FIBC apilable de 40" x 48" x 43" ALPAL
[tab name='Descripción']
DESCARGAR HOJA DE ESPECIFICACIONES
[tab name='Dimensiones y capacidad']
Dimensiones |
in |
Capacidad |
|
Altura exterior |
43.3 |
Volumen interno (pies cúbicos) |
32.3 |
Ancho exterior |
39.4 |
Capacidad en peso (lb) |
1323 |
Largo exterior |
47.2 |
Estiba máxima de carga estática |
6 |
Altura interior |
34.5 |
Estiba máxima de carga dinámica |
2 |
Ancho interior |
33.5 |
Peso máximo de la pila |
7,000 |
Largo interior |
41 |
Tipo de piso |
Palet |

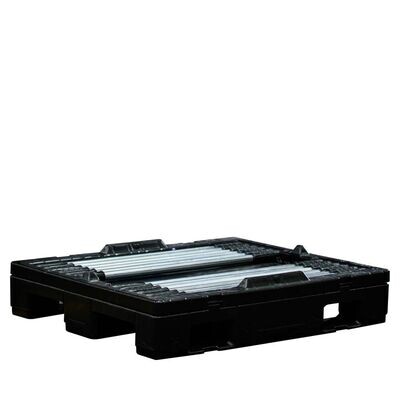

Altura plegado |
8.5 |
[tab name='Envío y características']
Envío |
in |
Características |
|
Cantidad por camión de 53' |
60 |
Puertas abatibles |
0 |
Con carga, plegado, 53' |
360 |
Altura de la puerta |
N/D |
Empty Return Ratio |
6:1 |
Ancho de la puerta |
N/D |
Hueco para horquillas al lado largo |
7.5 x 4.5 |
Ventilación |
N/D |
Hueco para horquillas al lado corto |
10 x 4.5 |
Aprobaciones |
N/D |
Entrada de montacargas |
4 vías |
Tapas opcionales |
N/D |
Peso (lb) |
110 |
Marca |
ALPAL |
[tab name='Beneficios clave']
Apilar de forma segura |
Fácil montaje |
6:1 Relación de retorno |

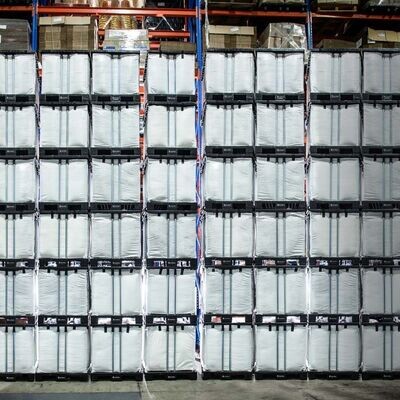

ALPAL Los contenedores pueden apilarse de forma segura uno encima del otro. |
El ALPAL puede ser montado por 2 personas capacitadas en menos de 40 segundos. |

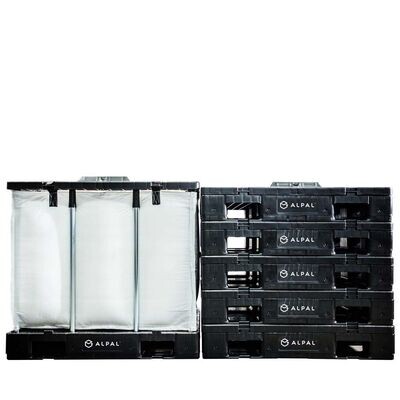

El ALPAL puede enviar 60 unidades abiertas y 360 plegadas en un remolque de 53'. |
[tab name='Preguntas frecuentes']
Q: Do you need to use a liner with fluid and granulated substances?
A: Yes, the four interior struts are placed at each corner of the woven box bag and attached to the pallet base through a small opening at the bottom of the woven bag. A liner is required to ensure no product loss through the four small strut corner openings. One liner is included with the ALPAL 40" x 48" x 43" Stackable FIBC.
Q: Will the ALPAL ship fully assembled?

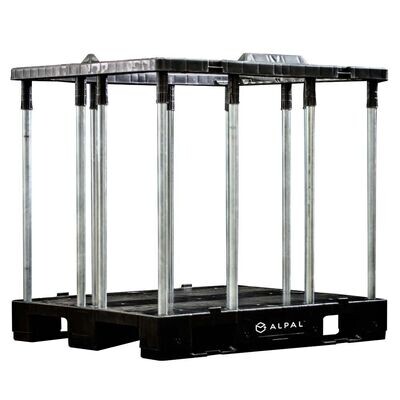

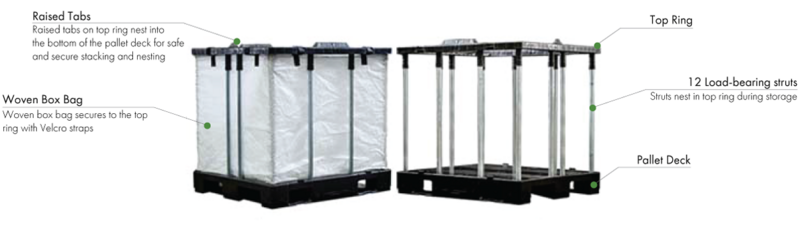

The top ring housing the 12 load-bearing struts
is nestled securely on top of the pallet deck.
Q: Do I need a lid to stack ALPAL containers?
